Description

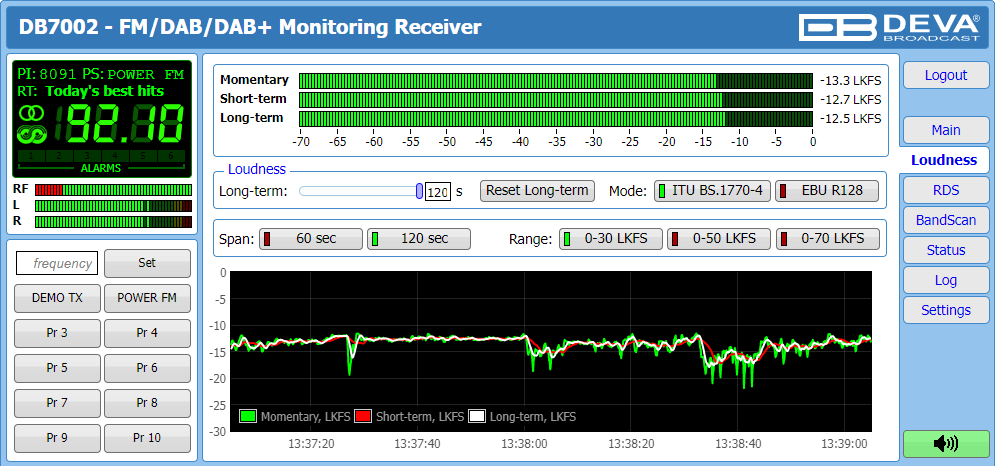

Simultaneous FM and DAB/DAB+ monitoring in one advanced product

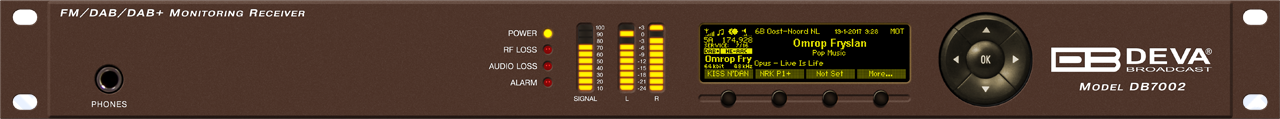

DB7002 is a revolutionary solution that combines in a single, high-precision tool the most important functionalities of two separate types of product.

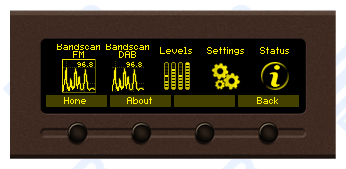

To achieve that, our engineers have equipped this model with two independent tuners – one for FM and one for DAB/DAB+, allowing for the device to perform both FM and DAB/DAB+ monitoring in parallel. It measures all of the most significant signal parameters and stores them in log files for future analysis. Its practical design and user-friendly operation also make this product a must-have.

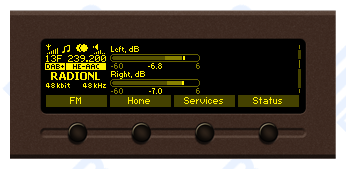

DAB/DAB+ Radio Input | |
RF frequency range | 168 – 240 MHz |
DAB/DAB+ | Band III Channels 5A – 13F |
Sensitivity | 18 dBµV |
Input connector | BNC 50Ω |
In compliance with | ETSI EN 300 401 |
Ensemble acquisition Time | 940 ms |
L&R Audio | 1%, +5.0 to -50.0 dB, 0.1 dB resolution |
DAB/DAB+ Radio Metering | |
Quality indicators | RSSI, SNR, CNR, FIC Quality, FIB Errors, FFT Offset |
PAD | DLS, MOT |
Metadata Displayed | Ensemble Label, Component List & ID, Service List & ID, Dynamic Label, PTY, Sample Rate, Bit Rate, Gain, Mode, Service Mode, Protection Info, Current CU & Address, Country, Language, Time & Date |
FM Radio Input | |
Tuning Range | 87.1-108 MHz (CCIR) |
Tuning Step | 10, 20, 50, 100 kHz |
Tuner Sensitivity | 30 dBµV |
Antenna Ports | BNC Connector, 50Ω |
Antenna Ports Isolation | > 40 dB |
Dynamic range | 100 dB |
FM Demod | |
IF Filter Bandwindth | 15 Increments (27kHz – 157kHz, Auto) |
Dynamic range | 90 dB |
Stereo Decoder | |
Frequency Response (L and R) | ±0.1 dB, 10 Hz to 15 kHz |
SNR (Stereo) | 60 dB, 50 µs de-emphasis |
THD | 0.15% @ 1kHz, 0.4% from 10 Hz to 15 kHz, 50 µs de-emphasis |
Separation | 50 dB, 50 Hz to 10 kHz, 50 µs de-emphasis |
Crosstalk | 52 dB |
RDS Decoder | |
Standards | European RDS CENELEC; United States RBDS NRSC |
Error Correction & Counting | Yes |
AF Decoding | Yes |
CT (Time/Date) | Yes |
PI, PTY, DI, MS | Yes |
TA/TP | Yes |
PS (Program Service name) | Yes |
Group Analyzer | Yes |
BER Analyzer | Yes |
Group Sequence Display | Yes |
FM Radio Metering | |
RF Level | ±1 dB, 0 to 100 dBµV |
Audio | ±1 dB, +10.0 to -55.0 dB, 0.1 dB resolution |

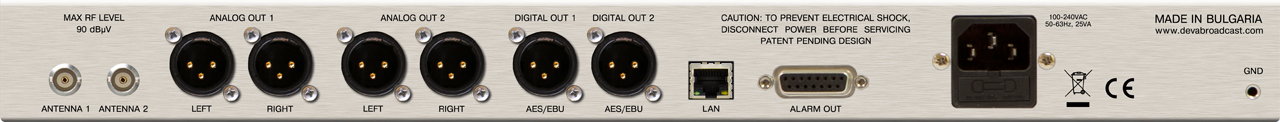

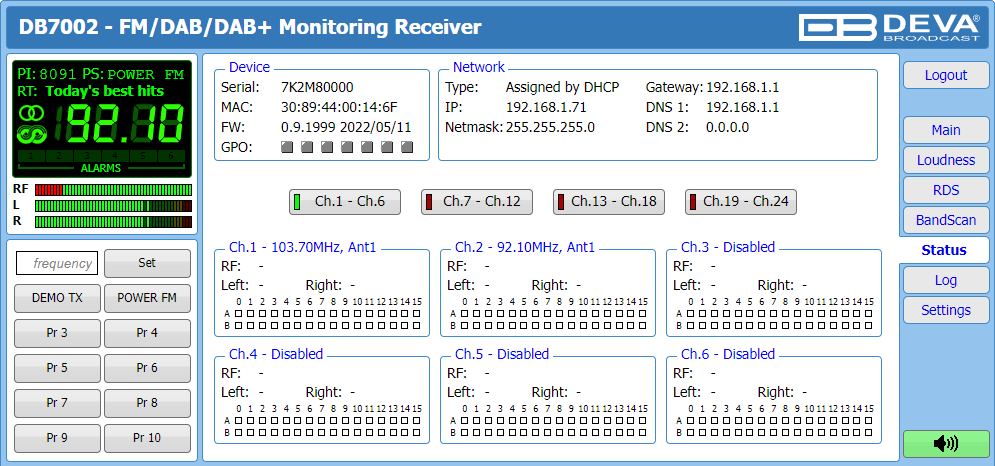

Outputs | |
FM Audio (L, R) | +6 dBm, 600Ω, balanced XLR Connector |
DAB/DAB+ Audio (L, R) | +12 dBm, 600Ω, balanced XLR Connector |
AES3 (L, R) | 5.0 Vp-p, 110Ω, balanced XLR Connector |
Alarms | 7 Programmable terminals on rear panel, optoisolated |
Headphone | 6,3mm (1/4″) Phone Jack |
Communication Interfaces | |
Ethernet 10/100 Base-T | RJ45 Connector |
Measurement Storage | |
Storage | 16GB Build-in Memory Card |
Data format | Text, CSV |
Power | |
Voltage | 100-240V / 50-60 Hz |
Power Consumption | 20VA |
Connector | IEC320, Fused and EMI-suppressed |
Size and Weight | |
Dimensions (W;H;D) | 485 x 44 x 180 mm |
Shipping Weight | 540 x 115 x 300 mm / 2.700 kg |
HS Code | 8527212000 |
