Deva Band Scanner GPS

Portable FM Modulation and Signal Quality Monitoring.

Back to Products

Description

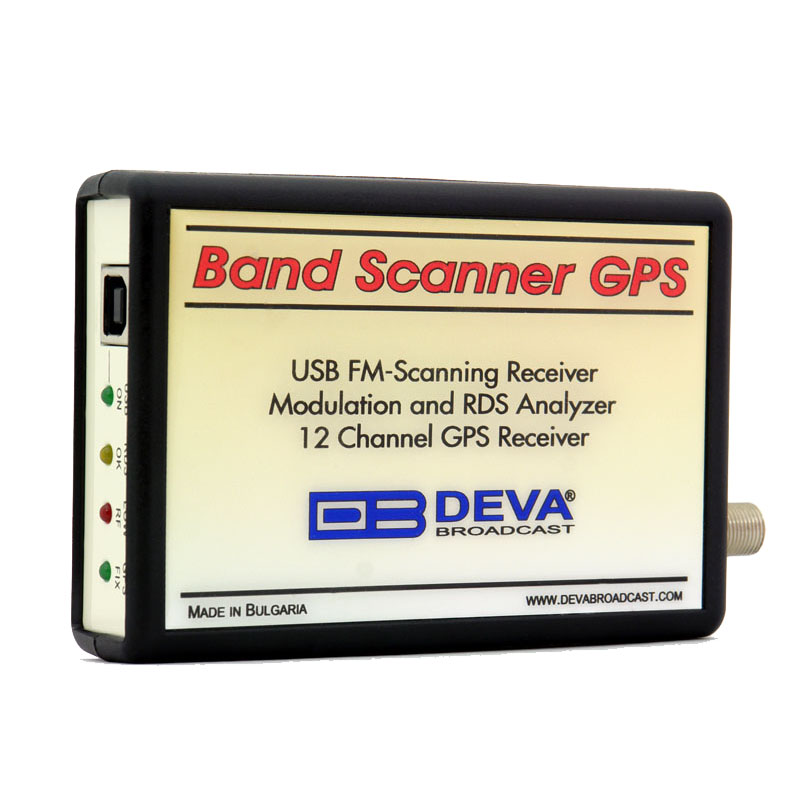

Band Scanner GPS

This is a tool to evaluate FM broadcast band congestion and to log station identification parameters.”Band Scanner GPS” is a Google Earth compatible tool for visualization of collected FM Radio measurements. When running a campaign with the “Band Scanner GPS”, the results will be saved in a Log file. “Band Scanner GPS” can then convert this file into KMZ format and the results could be viewed on Google Earth. The Log file can be exported also as transitional format for future analysis or to kept in record. The “Band Scanner GPS” can measure RF level, MPX deviation, Left & Right Audio levels, RDS and Pilot injection levels. The system is powered by the USB port of any Windows PC. Supplied free of charge Windows software sweeps the receiver across the FM band, logging every carrier and generating a spectrum display of carrier level vs. frequency. It then analyzes each carrier and creates a station list. Stations with an RDS presence are further refined to show all the radio data groups that were being transmitted. Its interface is like a portable radio’s: It may be tuned manually through the receiver screen or by double-clicking a point on the spectrum plot or an entry on the station list. Spectrum plots may be saved as jpg or bmp files. The RDS data error level is graphed in a separate window on the receiver screen. The program can be monitored with headphones plugged into a standard 1/8″ jack.

[button link=”mailto: info@agilebroadcast.com.au?subject=Enquiry regarding Deva Band Scanner” text=”grey”]Email Us regarding this Product[/button] OR [button link=”https://www.agilebroadcast.com.au/contact-us” text=”grey” window=”yes”]Send Web Enquiry[/button]

Additional information

Weight 3.5 kg
Dimensions 20 × 20 × 30 cm
